What are the NCC 2022 window installation rules for head gaps, fixings and flashings?

For years in Australian residential construction, window and door installation was treated primarily as trade custom. While the windows themselves were rigorously tested in laboratories to comply with Australian Standard AS 2047, how they were physically secured into a timber frame or double-brick opening was frequently left to on-site carpenter discretion or manufacturer installation leaflets. Under the National Construction Code 2022 (NCC 2022), that era of casual fixing ended. In the restructured code, window and external glazed door installation was elevated into a mandatory statutory requirement under ABCB Housing Provisions Part 8.2 (and clause H1D8 of NCC Volume Two). The code establishes explicit, legally enforceable rules: building structural loads must never bear upon window assemblies, a minimum 10mm clearance gap must be left above the window head, and packing shims are strictly restricted to the sides and bottom.

The statutory shift: why Part 8.2 changes site inspections

In previous code editions, certifiers and building surveyors inspected the frame and checked window energy labels, but rarely issued formal defect notices over the gap above a window or the placement of shims unless an obvious structural failure had occurred. Because Part 8.2 is now a standalone Deemed-to-Satisfy (DTS) provision within the Housing Provisions, building surveyors across Australia inspect rough-in framing and window fixings against explicit statutory clauses before approving pre-plaster or pre-lining stages.

The motivation behind this regulatory tightening is simple building physics: a window assembly is an engineered cladding element designed to resist wind loads, shed driving rain, and provide thermal insulation. It is not an engineered structural column or lintel prop. When windows are pinched tight inside rough openings or hard-fixed to structural framing members without settlement allowances, normal building movement transfers thousands of kilograms of structural dead and live loads directly onto the aluminium frame, with disastrous consequences for airtightness, water resistance, and user safety.

The 10mm head gap mandate: understanding building movement and deflection

NCC 2022 clause 8.2.2(b) states unequivocally: 'A minimum 10 mm gap must be provided between the top of the window assembly and any loadbearing framing or masonry wall element.' Clause 8.2.2(c) immediately adds that this 10mm minimum must be increased where necessary to allow for frame settlement over wide openings.

Why does a new house need a 10mm to 15mm open space above every window? Australian timber and masonry homes are dynamic structures that move substantially over their first five years:

Timber framing shrinkage: As framing timber (especially unseasoned or moisture-exposed softwood and hardwood) dries to equilibrium moisture content, it shrinks across its radial and tangential grain, causing floor and lintel framing to drop.

Lintel deflection: Engineered timber lintels, steel parallel flange channels (PFC), and composite beams are designed to deflect slightly under the dead weight of upper-storey walls, floor joists, and roof trusses under live wind and snow loads.

Brickwork expansion: Clay brickwork expands over time as it absorbs atmospheric moisture, while the internal timber frame shrinks, creating differential movement between the internal reveal and external masonry.

Foundation and ground settlement: Seasonal reactive clay soils cause micro-movements across the concrete slab-on-ground that transmit subtle stresses through the building skeleton.

If a carpenter installs a window hard against the underside of a lintel with zero clearance, or wedged tight with timber blocks, the descending lintel compresses the window head. The aluminium extrusion bows downward, compressing the sash weather-seals, crushing the top roller guides on sliding doors, causing operable sashes to bind or jam, and in extreme cases, point-loading the insulated glass unit (IGU) until the glass shatters.

Wide openings and architectural sliding doors: when 10mm is not enough

While 10mm is the baseline minimum for standard punch-hole bedroom windows, clause 8.2.2(c) requires specifiers and builders to calculate greater clearance for expansive architectural openings. In modern Australian homes, open-plan living areas frequently feature multi-panel sliding doors, stacking doors, or corner bifold systems spanning 3.0m, 4.0m, or over 5.0m.

Under structural engineering standards (such as AS 1684 for residential timber framing and AS/NZS 1170.0 for structural design actions), allowable lintel deflection over a 4.5-metre span can legally reach 12mm to 15mm under combined dead and live load combinations. If a builder leaves only a standard 10mm rough opening gap over a 4.5-metre sliding door, the lintel will inevitably deflect and contact the aluminium frame. For door spans exceeding 2.4 metres, leading fabricators and engineers recommend providing an engineered head gap of 15mm to 20mm, coupled with flexible head flashings and compressible backing foam, ensuring the door glides effortlessly regardless of upper-level floor movement.

Packing and shimming rules: where shims belong (and where they don't)

NCC 2022 clause 8.2.2(d) lays down strict prescriptive requirements for packers (shims) used to square and support window and door assemblies:

Location: Packing must be located strictly along each side (jamb) and bottom (sill). It must never be placed along the top (head).

Fixing: Packers must be permanently secured in place so they cannot dislodge or vibrate loose over the building life cycle, ensuring the frame jambs and sill remain permanently straight, plumb, and level.

Flashing clearance: Packers must be kept completely clear of any flashing material, ensuring they do not pierce, pinch, or create reverse falls in water barrier membranes.

The prohibition on head packing is the most frequent reason for failed framing inspections in 2026. Carpenters often wedge packers into the head gap out of habit to 'tighten up' the window during rough-in. Under NCC 2022, wedging packers above the head directly breaches clause 8.2.2(d)(i) because it creates a solid bridge that transfers structural loads directly into the window frame. Any packer found above the head during a pre-plaster inspection must be removed.

Along the sill, packers must be positioned directly beneath vertical frame members (jambs and structural mullions) to transfer the heavy dead load of double-glazed units down to the sub-floor framing without bowing the horizontal sill extrusion. Along the jambs, packers must align precisely with mechanical fixing screw points, preventing the installer from pulling the aluminium frame out of plumb when tightening fasteners.

Fasteners, fixing centres, and galvanic compatibility

Securing the window assembly to the surrounding building structure is an exercise in balancing structural resistance with thermal expansion. The fixings must withstand the peak design wind pressures specified for the site's wind classification under AS 4055 (ranging from N1 in sheltered suburban terrain up to C4 in severe tropical cyclonic regions).

To achieve compliance with AS 2047 and general NCC structural requirements, fasteners along jambs should be positioned within 100mm to 150mm of each corner (top and bottom) and spaced at maximum centres of 450mm to 600mm along the jamb height. For brick-veneer construction, windows fitted with timber reveals are typically secured using hot-dip galvanised or stainless steel twist-shank nails or screws driven through the reveal into the wall studs, coupled with aluminium or galvanised fixing brackets.

Material compatibility is critical to prevent premature failure. Aluminium extrusions are vulnerable to galvanic corrosion when placed in direct electrical contact with dissimilar metals in the presence of moisture. Fasteners in direct contact with aluminium frames must be 300-series stainless steel, hot-dip galvanised steel, or coated with an approved non-conductive barrier. Raw zinc-plated screws or untreated mild steel nails must never be used in external window installations.

Flashings, damp-proof courses, and weatherproofing integration

A window that passes laboratory water penetration tests at 300 Pa or 450 Pa under AS 2047 will still leak into the home if its perimeter interfaces are not properly integrated into the building's drainage plane. NCC Housing Provisions Part 5.7 (Weatherproofing of masonry) and Part 8.2 work together to mandate an unbroken barrier against wind-driven moisture:

Head flashings: A continuous corrosion-resistant metal or pliable head flashing must be installed above the window opening, extending at least 50mm past each jamb, with upturned stop-ends (end dams). The wall sarking membrane must overlap the outside face of the head flashing upturn by at least 50mm, ensuring any water tracking down the pliable membrane is shed harmlessly past the window opening.

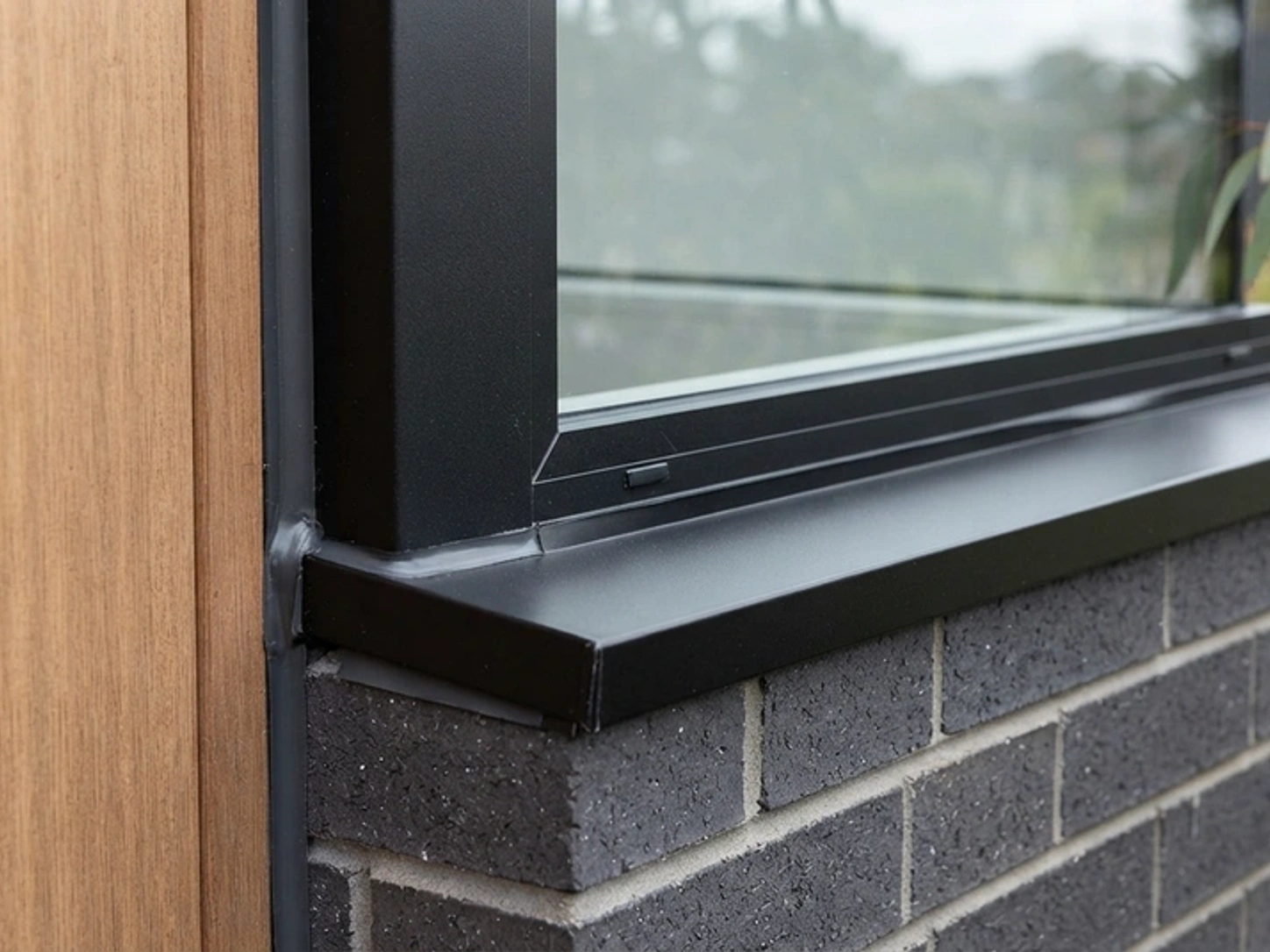

Sill trays and sub-sills: For exposed locations, coastal sites, or commercial-style flush architectural installations, a continuous aluminium sub-sill or folded sill tray is essential. Incidental water penetrating perimeter seals is caught by the sub-sill and directed through weep slots outward into the brick cavity or past the external cladding face.

Jamb flashings and sealants: In cladded or lightweight framing systems, pliable building membrane must wrap neatly into the window reveal. Where perimeter sealants are applied, they must be backed by closed-cell polyethylene backing rods, ensuring the sealant bead operates in two-sided adhesion and accommodates ongoing thermal expansion.

The certifier inspection checklist: five common framing defects

To ensure your project passes building surveyor audits without delays or costly rectification work, verify that your window installation avoids these five common NCC 2022 defects before calling for an inspection:

Defect 1: Missing or packed head gap. Any window nailed flush against a lintel or fitted with timber shims above the head violates clause 8.2.2(b) and will trigger an immediate defect notice.

Defect 2: Out-of-square assemblies. Measuring diagonally from corner to corner (top left to bottom right vs. top right to bottom left) must show equal dimensions within 2mm to 3mm. An out-of-square frame impairs weather seals and causes draft leaks.

Defect 3: Penetrated or pinched flashings. Packers driven over the top of pliable sill damp-proof courses or flashing membranes puncture the water barrier and violate clause 8.2.2(d)(iii).

Defect 4: Inadequate wide-span clearance. Specifying only 10mm of clearance over a 4-metre timber lintel without considering deflection calculations under upper floor joists.

Defect 5: Uncompatible fasteners. Using unplated drywall screws or non-galvanised brads that corrode quickly when exposed to moisture in external cavities.

Protecting window warranties through compliant installation

High-performance aluminium windows and doors - particularly double-glazed and thermally broken systems - represent a substantial portion of a project's budget. However, window manufacturer warranties explicitly distinguish between product manufacturing defects and installation defects. If a multi-slide door binds because structural deflection crushed the head track, or if an IGU seal fails because the sill bowed under point loads, manufacturer warranties will not cover the repair.

By adhering strictly to NCC 2022 Part 8.2 - maintaining an unhindered 10mm+ head clearance, packing only the jambs and sill, isolating fasteners from dissimilar metals, and integrating continuous head and sill flashings - builders and homeowners ensure their windows perform exactly as rated under AS 2047, delivering decades of effortless operation, draft-free comfort, and total weather protection.

Frequently Asked Questions

Does the 10mm head gap rule apply to replacement windows in existing homes?

Yes, where the window replacement involves structural alteration, building permit sign-off, or full replacement of the window frame into the structural stud opening. While retrofit insert systems that retain existing timber sub-frames operate under specific alteration guidelines, any full-frame replacement must ensure the lintel does not transfer dead loads onto the new window extrusion.

Can you fill the 10mm head gap with expanding polyurethane foam?

Yes, provided it is a flexible, low-expansion polyurethane foam specifically formulated for window and door perimeters. Low-expansion foam provides excellent thermal and acoustic insulation and restricts air infiltration, but remains sufficiently compressible to absorb structural lintel deflection without transferring rigid vertical loads to the window head. Rigid, high-density structural foams should never be used.

How do you weatherproof the 10mm open gap at the top of the window?

Externally, the gap is shielded by the metal or pliable head flashing, which sits directly above the window head and sheds water away from the opening. Internally, the gap is closed with architraves, plasterboard reveals, or flexible trim. The 10mm space between the aluminium extrusion and timber lintel is typically filled with a compressible backing rod and flexible polyurethane mastic or low-expansion foam to maintain airtightness.

Who is legally responsible for window installation compliance — the builder or manufacturer?

Under Australian building legislation, the builder (or primary building contractor) is legally responsible for ensuring window installation complies with NCC Housing Provisions Part 8.2 and relevant Australian Standards on site. The window manufacturer is responsible for manufacturing the window assembly to comply with AS 2047 and supplying certified performance labels (wind, water, and air ratings).

What happens if a building certifier finds packers above the window head?

The certifier will issue a non-conformance notice during the frame or pre-lining inspection. The builder will be required to remove the head packers, verify that the window frame has not bowed or sustained damage, ensure diagonal squareness, and call for a re-inspection before wall insulation and internal plasterboard linings can be installed.
